10b · Polarization: a splitter and a splitter-rotator¶
Everything so far launched one polarization (TE0). Real links carry two —
TE0 and TM0 — and managing them is its own discipline. This notebook simulates
two classic polarization-handling devices, both taken straight from
gdsfactory, with multi-mode S-parameters (spec.modes=(1, 2)):
a polarization beam splitter (PBS) built from a directional coupler — TM couples across the gap much faster than TE, so one length can separate the two;
gdsfactory’s
polarization_splitter_rotator(PSR) — designed to take TM0 in and route it out as TE0 on a separate port (we measure how close the stock cell gets in this technology, on both engines).
Both devices were recorded on two multi-mode engines — Lumerical (licensed
local workstation) and tidy3d (cloud) — from the identical
(component, technology, spec), so every number below is cross-checked and
the notebook reproduces for free. beamz v1 is TE-only — polarization work
needs tidy3d or Lumerical (see 07).
from pathlib import Path
import gdsfactory as gf
import matplotlib.pyplot as plt
import numpy as np
from gds_fdtd.grid import resolve_index
from gds_fdtd.layout.gdsfactory import from_gdsfactory
from gds_fdtd.modes import waveguide_mode
from gds_fdtd.plotting import plot_component, plot_mode
from gds_fdtd.smatrix import SMatrix
from gds_fdtd.spec import SimulationSpec
from gds_fdtd.technology import Technology
def _find(rel: str) -> Path:
for base in (Path.cwd(), *Path.cwd().parents):
if (base / rel).exists():
return base / rel
raise FileNotFoundError(rel)
REC = _find("examples/10_cookbook/recorded")
tech = Technology.from_yaml(_find("examples/tech.yaml"))
gf.gpdk.PDK.activate()
1 · The two players: TE0 and TM0¶

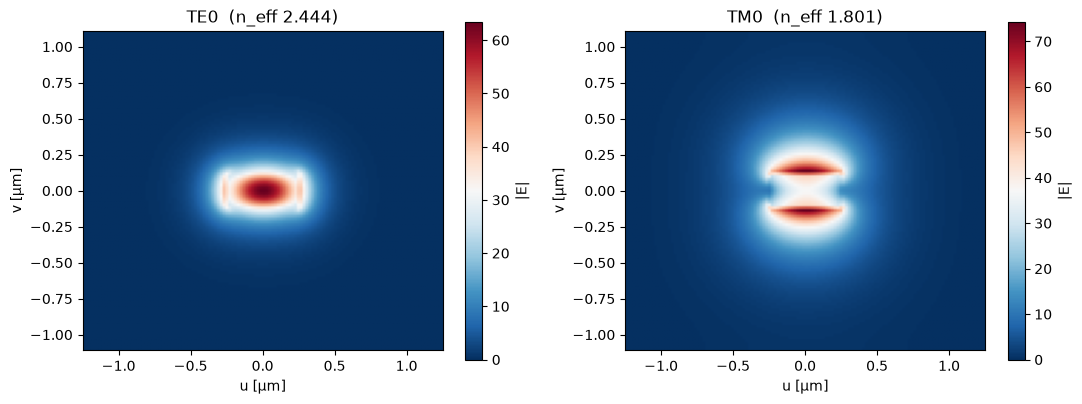

The strip waveguide’s first two modes. TE0 (E mostly in-plane, Ex) is
tightly confined; TM0 (E mostly vertical, Ez… shown via its dominant
in-plane pattern) sits at lower effective index and leaks further into the
cladding — which is why it couples across gaps faster. Solved offline
with the free local mode solver.
n_core = resolve_index(tech.device[0].material, 1.55).real
n_clad = resolve_index(tech.superstrate.material, 1.55).real
modes = waveguide_mode(0.5, 0.22, n_core, n_clad, 1.55, n_modes=2)
fig, ax = plt.subplots(1, 2, figsize=(11, 4))
plot_mode(modes[0], ax=ax[0])
ax[0].set_title(f"TE0 (n_eff {modes[0].n_eff.real:.3f})")
plot_mode(modes[1], ax=ax[1])
ax[1].set_title(f"TM0 (n_eff {modes[1].n_eff.real:.3f})")
fig.tight_layout()
plt.show()
print(
f"TE0 n_eff = {modes[0].n_eff.real:.4f} TM0 n_eff = {modes[1].n_eff.real:.4f} "
"(lower -> less confined -> couples faster)"
)
18:59:23 PDT WARNING: Using canonical configuration directory at '/home/mustafa/.config/tidy3d'. Found legacy directory at '~/.tidy3d', which will be ignored. Remove it manually or run 'tidy3d config migrate --delete-legacy' to clean up.
18:59:24 PDT WARNING: Use the remote mode solver with subpixel averaging for better accuracy through 'tidy3d.web.run(...)' or the deprecated 'tidy3d.plugins.mode.web.run(...)'. Alternatively, you can install the package 'tidy3d-extras' using 'pip install "tidy3d"' and set 'config.simulation.use_local_subpixel=True'.
WARNING: Permittivity spatial data array does not fully cover the requested region.
TE0 n_eff = 2.4441 TM0 n_eff = 1.8011 (lower -> less confined -> couples faster)
2 · PBS — a directional coupler that splits polarizations¶
One coupler, two very different beat lengths: the loosely-confined TM0
transfers across the 0.2 µm gap several times faster than TE0. Choosing the
coupler length at TM’s cross maximum (~6 µm here) makes one device route
the polarizations to different ports. (Pick it badly — say 12 µm — and TM
beats across and back; we measured exactly that before settling on 6 µm.)
Ports: o1 (in, bottom-left), o4 (through, bottom-right), o3 (cross,
top-right).

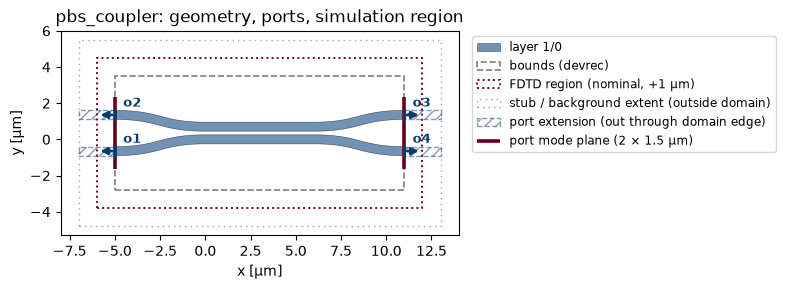

pbs = from_gdsfactory(gf.components.coupler(length=6.0, gap=0.2, dx=5.0, dy=2.0), tech)
pbs.name = "pbs_coupler"
plot_component(pbs, spec=SimulationSpec())
plt.show()

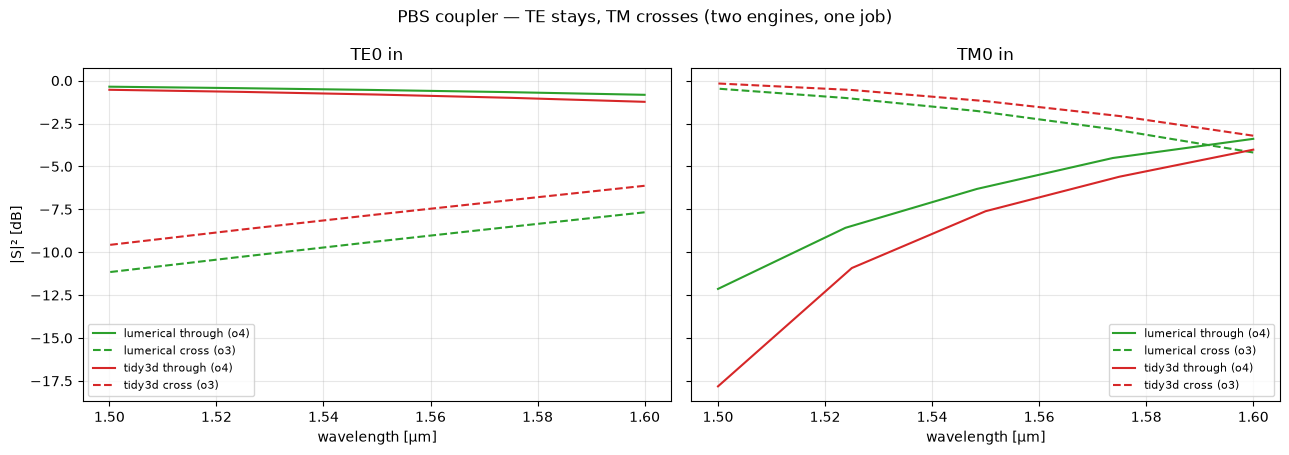

The recorded multi-mode S-matrices (modes=(1, 2); mode 1 = TE0, mode 2 =
TM0) from both engines on the identical job. Solid = through arm (o4),
dashed = cross arm (o3); color = engine. The two engines tell the same
story: TE stays, TM crosses.
pbs_sm = {
"lumerical": SMatrix.from_npz(str(REC / "pbs_coupler_lumerical.npz")),
"tidy3d": SMatrix.from_npz(str(REC / "pbs_coupler_tidy3d.npz")),
}
ecolor = {"lumerical": "tab:green", "tidy3d": "tab:red"}
fig, axs = plt.subplots(1, 2, figsize=(13, 4.6), sharey=True)
for ax, (pol, m) in zip(axs, (("TE", 1), ("TM", 2)), strict=True):
for eng, sm in pbs_sm.items():
ax.plot(
sm.wavelength_um,
sm.magnitude_db(out=4, in_=1, mode_out=m, mode_in=m),
"-",
color=ecolor[eng],
label=f"{eng} through (o4)",
)
ax.plot(
sm.wavelength_um,
sm.magnitude_db(out=3, in_=1, mode_out=m, mode_in=m),
"--",
color=ecolor[eng],
label=f"{eng} cross (o3)",
)
ax.set_title(f"{pol}0 in")
ax.set_xlabel("wavelength [µm]")
ax.grid(alpha=0.3)
ax.legend(fontsize=8)
axs[0].set_ylabel("|S|² [dB]")
fig.suptitle("PBS coupler — TE stays, TM crosses (two engines, one job)")
fig.tight_layout()
plt.show()
for eng, sm in pbs_sm.items():
i0 = int(np.argmin(np.abs(sm.wavelength_um - 1.55)))
for pol, m in (("TE", 1), ("TM", 2)):
thru = float(sm.magnitude_db(out=4, in_=1, mode_out=m, mode_in=m)[i0])
cross = float(sm.magnitude_db(out=3, in_=1, mode_out=m, mode_in=m)[i0])
keep = "through o4" if thru > cross else "cross o3"
print(
f"{eng:10s} {pol}0 @1.55: through {thru:+.2f} · cross {cross:+.2f} dB -> exits {keep}"
)
lumerical TE0 @1.55: through -0.54 · cross -9.43 dB -> exits through o4
lumerical TM0 @1.55: through -6.31 · cross -1.77 dB -> exits cross o3
tidy3d TE0 @1.55: through -0.81 · cross -7.80 dB -> exits through o4
tidy3d TM0 @1.55: through -7.61 · cross -1.20 dB -> exits cross o3

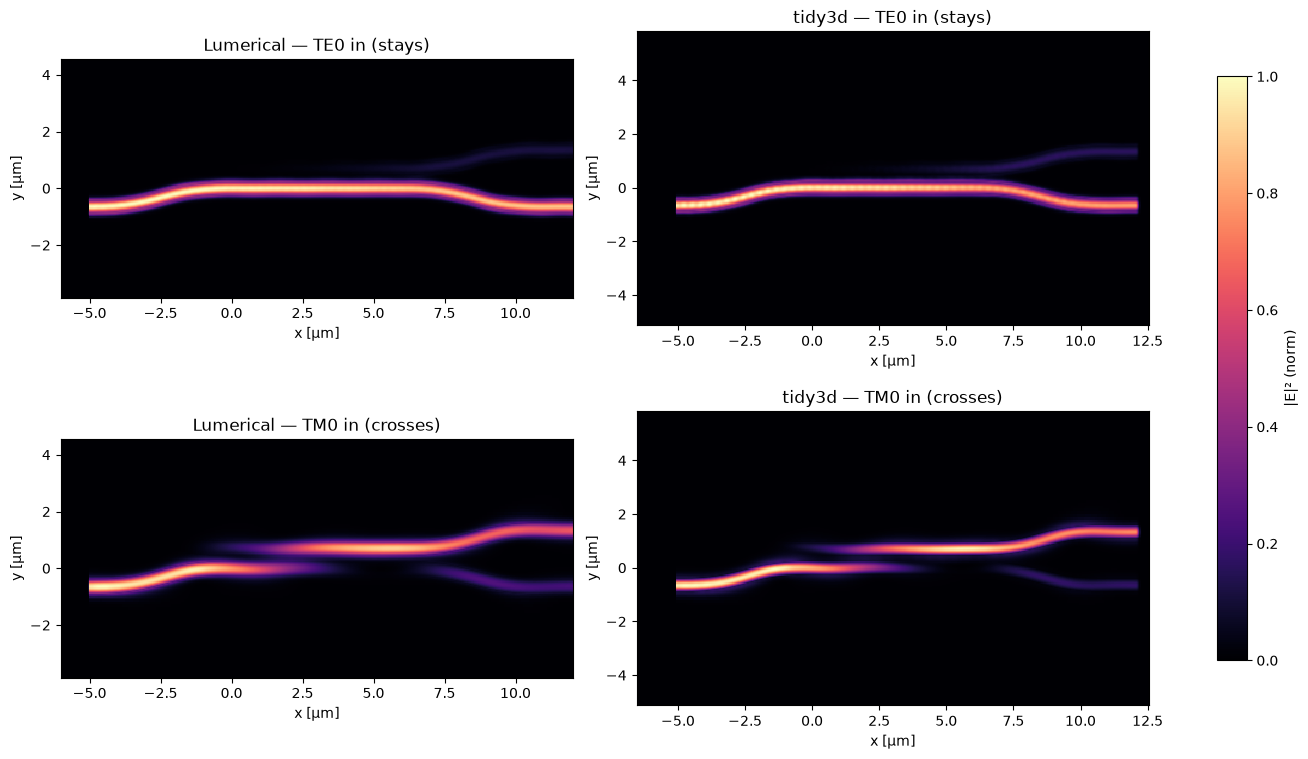

The same physics as fields: |E|² with a TE0 excitation (top row) versus a TM0 excitation (bottom row), from each engine. The TM field hops across the gap while the TE field stays in its arm, on both engines.
def _field_panel(ax, npz, title):
d = np.load(npz)
im = ax.pcolormesh(
d["x"], d["y"], (d["E2"] / d["E2"].max()).T, shading="nearest", cmap="magma", vmin=0, vmax=1
)
ax.set_aspect("equal")
ax.set_title(title)
ax.set_xlabel("x [µm]")
ax.set_ylabel("y [µm]")
return im
fig, axes = plt.subplots(2, 2, figsize=(13, 7.6), constrained_layout=True)
_field_panel(axes[0, 0], REC / "pbs_coupler_field_TE_in.npz", "Lumerical — TE0 in (stays)")
_field_panel(axes[1, 0], REC / "pbs_coupler_field_TM_in.npz", "Lumerical — TM0 in (crosses)")
_field_panel(axes[0, 1], REC / "pbs_coupler_field_TE_in_tidy3d.npz", "tidy3d — TE0 in (stays)")
im = _field_panel(
axes[1, 1], REC / "pbs_coupler_field_TM_in_tidy3d.npz", "tidy3d — TM0 in (crosses)"
)
fig.colorbar(im, ax=axes, label="|E|² (norm)", shrink=0.8)
plt.show()
3 · PSR — gdsfactory’s polarization splitter-rotator¶
The PBS separates polarizations but both stay what they were. A PSR goes
further: TM0 in → TE0 out, so downstream circuitry only ever sees TE.
gdsfactory ships a taper + asymmetric-coupler design
(gf.components.polarization_splitter_rotator, ~71 µm): the widening taper
adiabatically converts TM0 → TE1, and the narrow coupler arm peels TE1 off as
its TE0.
One physics prerequisite: TM0→TE1 rotation only happens when the
vertical symmetry is broken — this is an air-clad SOI design. We
simulate it with an air superstrate (nk: 1.0); a sidebar below shows what
happens if you bury the same layout in symmetric oxide.
import copy # noqa: E402
air_tech = copy.deepcopy(tech.to_solver_dict())
air_tech["superstrate"][0]["material"] = {"nk": 1.0} # air top-cladding

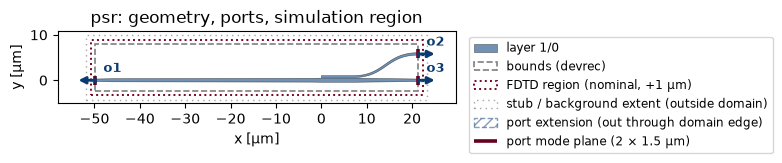

psr = from_gdsfactory(gf.components.polarization_splitter_rotator(), air_tech)
psr.name = "psr"
plot_component(psr, spec=SimulationSpec())
plt.show()
The recorded multi-mode S-matrices (air-clad) from both engines. The two questions that define a PSR: where does TE0 go (it should pass through on the bus, untouched), and where does TM0 go (it should exit the other arm — as TE0)?
psr_sm = {
"lumerical": SMatrix.from_npz(str(REC / "psr_lumerical.npz")),
"tidy3d": SMatrix.from_npz(str(REC / "psr_tidy3d.npz")),
}
print(f"{'engine':10s} {'in':6s} {'out':12s} {'@1.55 [dB]':>12s}")
for eng, sm2 in psr_sm.items():
i0 = int(np.argmin(np.abs(sm2.wavelength_um - 1.55)))
for pol_in, m_in in (("TE0", 1), ("TM0", 2)):
rows = []
for o, m_out, label in (
(2, 1, "o2 as TE0"),
(2, 2, "o2 as TM0"),
(3, 1, "o3 as TE0"),
(3, 2, "o3 as TM0"),
):
v = float(sm2.magnitude_db(out=o, in_=1, mode_out=m_out, mode_in=m_in)[i0])
rows.append((label, v))
best = max(v for _, v in rows)
for label, v in rows:
mark = " <-- main path" if v == best else ""
print(f"{eng:10s} {pol_in:6s} {label:12s} {v:>12.2f}{mark}")
engine in out @1.55 [dB]
lumerical TE0 o2 as TE0 -56.54
lumerical TE0 o2 as TM0 -52.17
lumerical TE0 o3 as TE0 -0.01 <-- main path
lumerical TE0 o3 as TM0 -32.06
lumerical TM0 o2 as TE0 -21.34
lumerical TM0 o2 as TM0 -19.08
lumerical TM0 o3 as TE0 -31.97
lumerical TM0 o3 as TM0 -8.48 <-- main path
tidy3d TE0 o2 as TE0 -50.88
tidy3d TE0 o2 as TM0 -38.88
tidy3d TE0 o3 as TE0 -0.01 <-- main path
tidy3d TE0 o3 as TM0 -50.98
tidy3d TM0 o2 as TE0 -14.72
tidy3d TM0 o2 as TM0 -24.97
tidy3d TM0 o3 as TE0 -51.65
tidy3d TM0 o3 as TM0 -3.14 <-- main path
Reading the table. The TE0 row is clean: both engines agree to a hundredth
of a dB that TE0 passes through on the bus (o3, ≈ 0 dB), untouched. The TM0
row shows partial conversion: o2 as TE0 sits ~6 dB above the symmetric-oxide
sidebar below, but much of the TM power radiates in the taper, and the two
engines, while agreeing qualitatively, differ on the weak converted paths
(hybrid-mode conversion is mesh-sensitive at this resolution). Two points
follow: the stock gdsfactory cell needs dimension re-optimization for this
stack before it is a production PSR, and weak multi-mode paths are where a
second engine is worth cross-checking (the 06 lesson, applied to polarization).

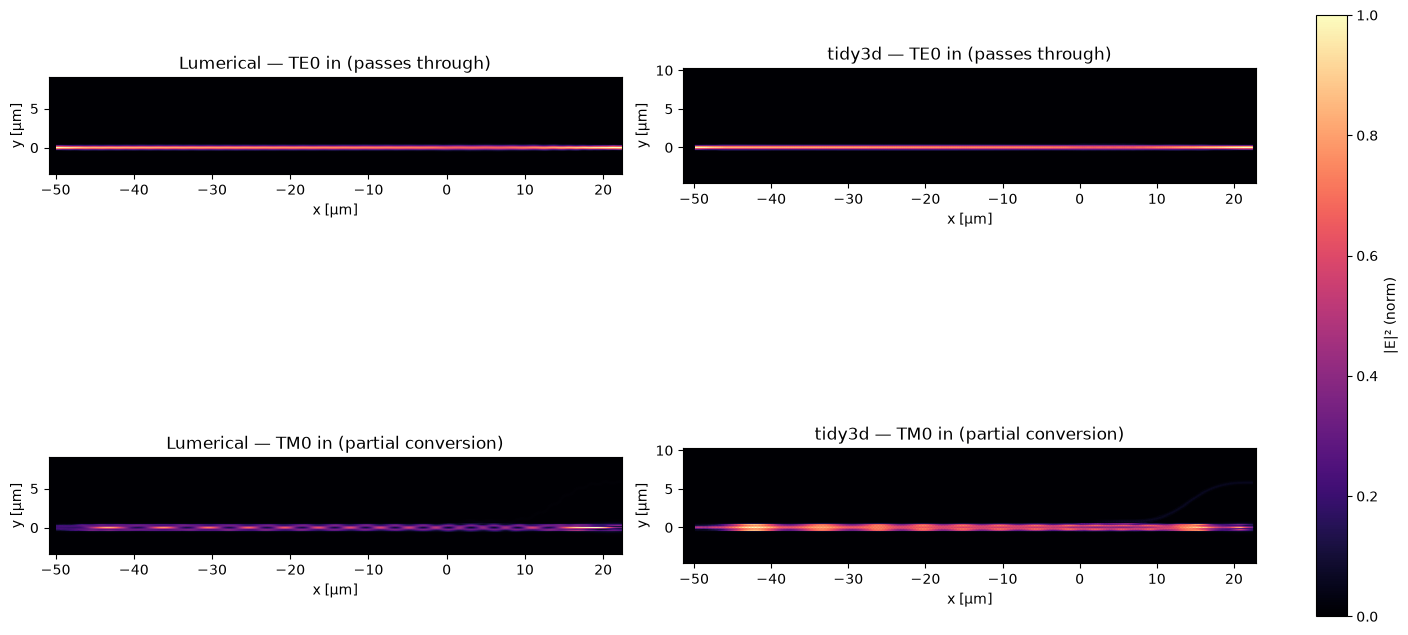

The two excitations as fields, from each engine — TE0 undisturbed on the bus, TM0 interacting strongly in the taper (partially converting, partially radiating):
fig, axes = plt.subplots(2, 2, figsize=(14, 7.6), constrained_layout=True)
_field_panel(axes[0, 0], REC / "psr_field_TE_in.npz", "Lumerical — TE0 in (passes through)")
_field_panel(axes[1, 0], REC / "psr_field_TM_in.npz", "Lumerical — TM0 in (partial conversion)")
_field_panel(axes[0, 1], REC / "psr_field_TE_in_tidy3d.npz", "tidy3d — TE0 in (passes through)")
im = _field_panel(
axes[1, 1], REC / "psr_field_TM_in_tidy3d.npz", "tidy3d — TM0 in (partial conversion)"
)
fig.colorbar(im, ax=axes, label="|E|² (norm)", shrink=0.8)
plt.show()
Recap¶
TE0/TM0 have different confinement (
waveguide_modeshows it offline), and that asymmetry powers polarization devices.A stock directional coupler at TM’s cross-maximum length acts as a PBS — and a mis-chosen length lets TM beat across and back (we measured both).
gdsfactory’s PSR: the TE path is clean (−0.01 dB, both engines in close agreement), and TM0→TE0 conversion happens only with the vertical symmetry broken (air-clad); the stock dimensions convert only partially in this stack, and the weak converted paths are where the two engines differ. Re-optimize the cell for your stack, and cross-validate. All three recordings (air-clad × 2 engines + the symmetric-oxide negative control) are committed.
Polarization work needs a multi-mode engine (tidy3d or Lumerical); beamz v1 is TE-only. Recorded artifacts + recipe in
recorded/PROVENANCE.md.
